| KEY FEATURES |
|
| The C Controller is compact enough for convenient installation and offers a large, multi-functional color liquid crystal display (LCD) that combines the functions of a conventional teach pendant with several specialized displays on an 8-inch touch panel. Easy Block Step Programing and high-end AS Language Programming are both available. |
|
| Special Features: |
| Surprisingly compact size |

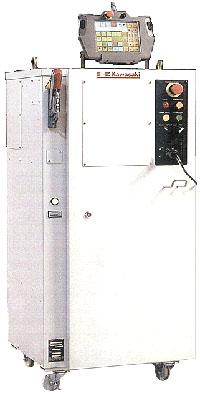

| The slim and compact C Controller is 21.7" (550 mm) wide, 49.25" (1250 mm) high and 19.7" (500 mm) deep. All maintenance can be from the front side, eliminating the need to have side access. |
|
| Multi-Functional Panel |
| The large color LCD panel brings together the controller's teach pendant, its specialized display functions and an 8-inch touch panel. Its easy-to-use features allow it to be used as a teach pendant during teaching, as an input/output operation panel for robot interface with peripheral devices, and as a status monitor during automatic operation. |
|
| Enable Switch |
| This safety device turns off the motor's power if the operator's hand is removed from the trigger switch on the multifunctional panel during teach mode. |
|
 |
|
|
|
|
 |
 |
|  |
| Excellent Performance in a Compact Unit |
| The flexible high-end AS robot programming language is useful for high-level applications. This language allows a wide range of robot control commands, numerical calculations, conditional jump, step divergence, interrupt I/O and program creationon PC. The controllers multitasking capability allows parallel progroms to run simultaneously while the robot is moving, and simple sequences do not require the use of a sequencer. |
|
|
I/O Graph
Data Set Menu
